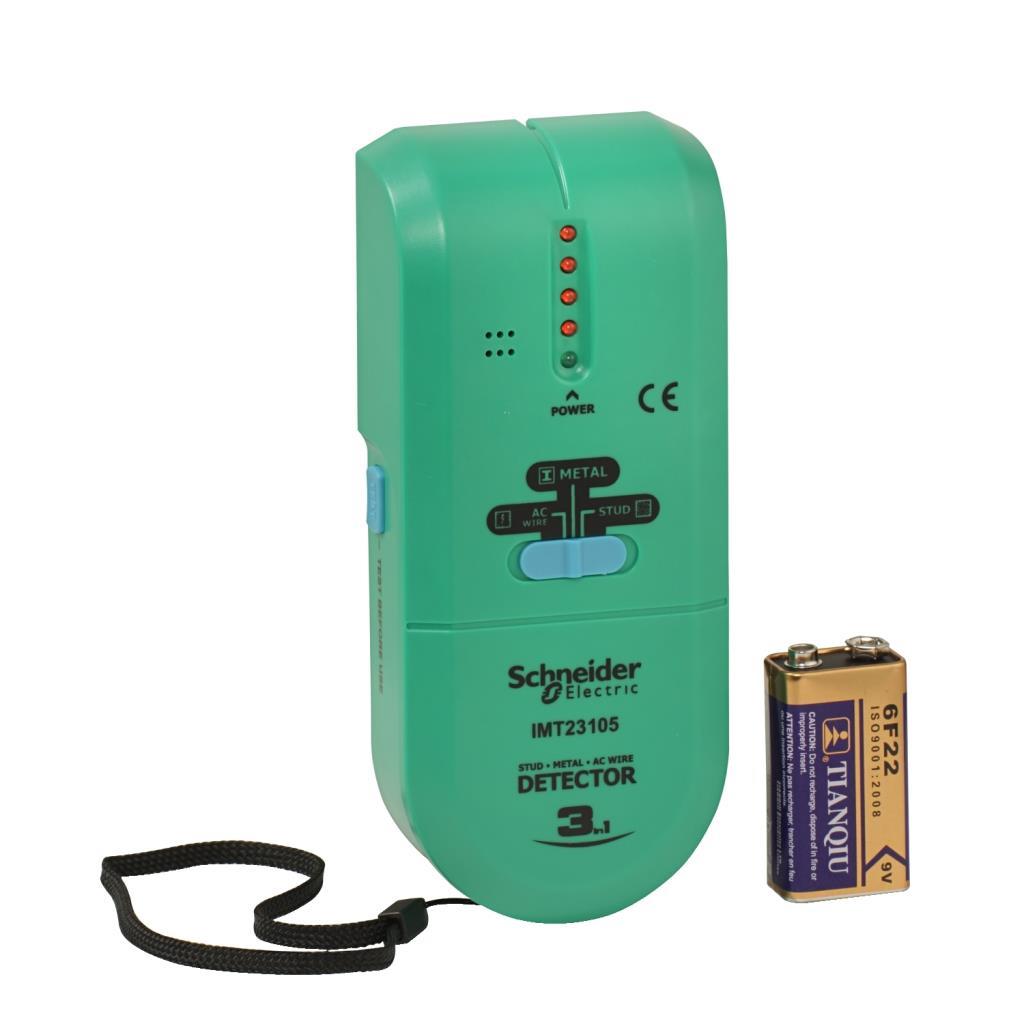

3'ü 1 ARADA LED DETEKTÖR IMT23105

SCHNEIDER ELECTRIC 3-in-1 DETECTOR

Range: Thorsman

Product and Component Type: LED detector

Supply: Battery 9 V 6F22

Display Type: LED indicator

Type of Setting: Manual

Device Composition: detector

Local Signaling: object detection by spotlight Top edge of object detection by LED indicator

Maximum Detection Type:

Stud mode: wood stud detection of 30 x 30 mm <18 mm
Metal mode: iron pipe detection of 25 mm <30 mm
AC mode: <50 mm for 90…250 V at 5060 Hz

Height: 150 mm

Width: 66 mm

Depth: 32 mm

Net Weight: 165 gr. with Battery

Voltage DC: 200mV/2/20/200/600 V

Resistance: 200 Ohm/2/20/200 kOhm/20 MOhm

Voltage AC: 2/20/200/600 V

Current AC: 2/20/200/600 A

Continuity: < 30 Ohm

Category III 600 V
